3D Digitizing & Reverse Engineering

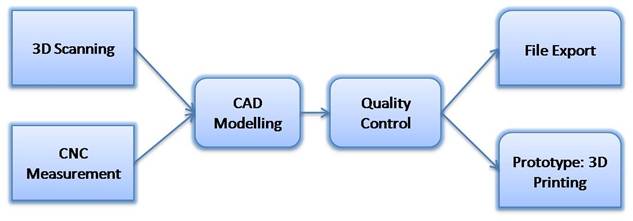

Reverse Engineering is the process of digitising a physical object to obtain computed data for further development. From a 3D scanning system (tactile probe or photogrammetry) digital data is obtained. At this point in time issues, such as the maintaining of draft angles, the fitment of assemblies, minor design changes, reconstruction of damaged parts and other aspects that depend on the client’s specifications are looked at. The CAD data can be exported in various formats (CopyCAD, PowerSHAPE). Pro/Engineer is also used to create solid models.

Available technologies

Mitutoyo Bright 710 CMM

Cimcore Portable Measurment System (Infinite 5018)

GOM ATOS II Camera

Renishaw Cyclone Touch Probe 3D Digitizer

Software used

Samples of work
